In modern machining, EDM and wirecut play vital roles. Both methods use electrical discharges to shape metals precisely. A wire cutting EDM machine provides unmatched accuracy for complex parts. This article explores the difference between wirecut and EDM.
Electrical Discharge Machining (EDM) is a unique metal cutting process that uses electrical sparks to shape hard materials. Unlike traditional machining, it doesn’t require the tool to physically touch the workpiece. Instead, it creates a series of electrical discharges between an electrode and the workpiece, eroding the material precisely.
EDM works by generating high-frequency electrical sparks in a tiny gap filled with a dielectric fluid, usually oil or deionized water. When voltage increases, the fluid breaks down and becomes conductive, causing a spark to jump across the gap. This spark melts and vaporizes small bits of the workpiece and the electrode. The dielectric fluid flushes away the debris, ensuring a clean cutting area. This process repeats rapidly, allowing intricate shapes and fine details to be formed without mechanical force or heat distortion.
There are two main types of EDM, each suited to different applications:
● Sinker EDM (Ram EDM): Uses a shaped electrode, often made of graphite or copper, that is slowly lowered into the workpiece. It’s ideal for creating complex cavities, mold shapes, and deep internal features. The electrode’s shape is a positive version of the cavity to be made, which means it needs to be precisely crafted beforehand. Sinker EDM excels in producing blind holes and intricate internal geometries.
● Wire EDM: Employs a thin, continuously moving wire as the electrode. The wire cuts through the workpiece, similar to a cheese wire slicing through cheese. It’s perfect for cutting through hard metals and creating precise, straight or curved 2D profiles. Wire EDM is commonly used for making punches, dies, and parts requiring tight tolerances. It can cut through thick materials with minimal thermal distortion.
EDM is widely used in industries that require precision and complex shapes, especially where traditional machining falls short:
● Tool and Die Making: Creating molds, dies, and stamping tools with intricate details and sharp corners.
● Aerospace and Automotive: Manufacturing components from hard metals like titanium or hardened steel.
● Medical Devices: Producing small, precise parts such as surgical instruments and implants.
● Electronics: Fabricating tiny, detailed components that require high accuracy.
● Rapid Prototyping: Quickly shaping hard materials for testing and development.
Both sinker and wire EDM offer unique advantages, making them essential in modern manufacturing for hard-to-machine materials and complex geometries.
Note: EDM processes require electrically conductive materials, so non-conductive materials like plastics or ceramics cannot be machined using this method.

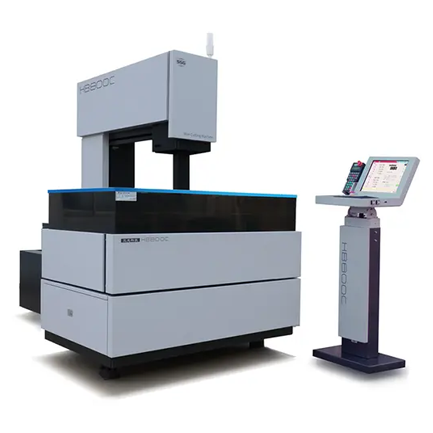

Wire Cut EDM uses a thin, continuously moving wire as its cutting tool. This wire acts as an electrode, carrying electrical discharges between itself and the workpiece. As the wire moves along a programmed path, sparks jump across the gap, eroding the metal precisely. The workpiece is submerged in a dielectric fluid, usually deionized water, which cools the area and flushes away the eroded particles. The wire is constantly fed from a spool to ensure fresh electrode material is always present, preventing excessive wear. This process allows for very accurate cuts through hard metals, producing smooth edges and intricate shapes.
Wire Cut EDM works only on electrically conductive materials. Common materials include:
● Hardened steels
● Tool steels
● Titanium alloys
● Carbides
● Aluminum and copper alloys
Because it does not rely on mechanical force, it can cut very hard or brittle metals without causing deformation or stress. However, non-conductive materials like plastics, glass, or ceramics cannot be processed using this method.
Wire Cut EDM offers several key benefits:
● High precision: It can achieve tolerances as tight as ±0.001 mm, making it ideal for parts requiring extreme accuracy.
● Complex shapes: The thin wire can cut intricate 2D profiles, including sharp corners and fine details.
● Minimal thermal distortion: The process generates little heat, reducing the risk of warping or altering material properties.
● No mechanical stress: Since the wire never physically touches the workpiece, delicate or thin parts remain intact.
● Capability to cut thick materials: Wire EDM can cut through thick plates, sometimes several hundred millimeters thick.
● Good surface finish: The cuts typically require little to no post-processing due to smooth edges.
This combination of precision and versatility makes Wire Cut EDM a popular choice for manufacturing punches, dies, aerospace components, and medical devices.
The main technical difference lies in the electrode used and the cutting direction. Traditional EDM (also called sinker EDM) uses a shaped electrode that is lowered vertically into the workpiece. This electrode must be carefully crafted to match the cavity or shape to be produced. In contrast, Wire Cut EDM employs a thin, continuously moving wire as the electrode, which cuts horizontally through the workpiece.
Another key difference is the dielectric fluid: sinker EDM typically uses hydrocarbon oil, while wire EDM uses deionized water. This affects flushing efficiency and cooling properties during machining.
Electrode wear also differs. In sinker EDM, the shaped electrode erodes over time and requires replacement or re-machining. Wire EDM, however, continuously feeds fresh wire, reducing electrode wear and maintaining consistent cutting performance.
Sinker EDM excels at creating complex 3D cavities, blind holes, and intricate internal features. It shapes the workpiece by sinking the electrode into it, making it ideal for molds, dies, and parts requiring detailed internal geometry.
Wire Cut EDM specializes in cutting through the entire thickness of the workpiece, producing precise 2D profiles or contours. It is highly suitable for cutting thin to thick plates, narrow slots, and parts needing tight tolerances and smooth edges. However, it cannot create blind holes or cavities.
Regarding material thickness, wire EDM can cut very thick materials, sometimes several hundred millimeters, while sinker EDM is generally limited by electrode size and machining time.
Sinker EDM requires custom electrodes made from graphite, copper, or tungsten to match the desired cavity shape. These electrodes must be designed, manufactured, and maintained, adding to setup time and cost.
Wire EDM uses a continuous wire, usually brass or copper alloy, fed from a spool. The wire is thin, allowing fine cuts and intricate details. Since the wire is consumed during cutting, it is replaced automatically, reducing downtime.
Wire Cut EDM is widely used across various industries due to its precision, ability to cut hard materials, and versatility. Its unique capabilities make it a go-to method for manufacturing complex parts that require tight tolerances and excellent surface finishes.
● Aerospace: Precision parts like turbine blades, engine components, and structural parts benefit from wire EDM’s accuracy and ability to handle tough materials such as titanium and hardened steel.
● Automotive: Wire EDM produces dies, molds, and intricate components used in engines and transmissions. Its precision helps in making parts that demand tight dimensional control.
● Medical Devices: Surgical instruments, implants, and dental tools often require the fine details and smooth finishes wire EDM delivers. The process allows for cutting tiny, delicate shapes without damaging the material.
● Tool and Die Making: Punches, dies, and molds with complex shapes are commonly made using wire EDM. The process supports the creation of sharp corners and narrow slots that traditional machining struggles with.
● Electronics: Wire EDM is used to fabricate small, precise components such as connectors and semiconductor parts where accuracy and surface quality are critical.
● Punches and Dies: Components used in stamping and forming processes.
● Molds: For injection molding, blow molding, and casting with detailed cavity shapes.
● Gears and Splines: Parts requiring precise contours and fine details.
● Medical Implants: Hip joints, dental crowns, and other custom implants.
● Aerospace Components: Blades, nozzles, and structural parts made from hard alloys.
● Precision Tools: Micro-cutting tools, gauges, and measuring devices.
● High Precision: Wire EDM can achieve tolerances as tight as ±0.001 mm, essential for aerospace and medical device manufacturing.
● Complex Geometry: It handles intricate 2D shapes and contours impossible for many other cutting methods.
● Minimal Thermal Effect: Produces cuts with little heat impact, preserving material properties and preventing warping.
● Material Versatility: Cuts through hardened steels, titanium, carbides, and other tough metals used in demanding applications.
● Reduced Post-Processing: Smooth finishes reduce the need for additional grinding or polishing, speeding up production.
When deciding between Wire Cut EDM and traditional EDM (often called sinker EDM), several factors come into play. Each method has its strengths and limitations, so knowing what to consider helps choose the best fit for your project.
● Part Geometry: If your part requires complex 3D cavities, blind holes, or intricate internal shapes, sinker EDM is usually preferable. Wire Cut EDM excels at cutting precise 2D profiles and through-cuts but cannot create blind features.
● Material Thickness: Wire Cut EDM can handle very thick materials, sometimes several hundred millimeters. Sinker EDM is typically limited by electrode size and machining time, making it less efficient for very thick sections.
● Material Type: Both require electrically conductive materials. However, wire EDM is often favored for harder or more brittle materials since it causes minimal mechanical stress.
● Tolerance and Surface Finish: Wire Cut EDM achieves extremely tight tolerances (as close as ±0.001 mm) and smooth finishes, reducing post-processing. Sinker EDM also offers high precision but may require additional finishing depending on electrode quality.
● Complexity of Setup: Sinker EDM needs custom-shaped electrodes, which take time and cost to produce and maintain. Wire EDM uses a continuously fed wire, simplifying setup and reducing downtime.
● Production Volume: For low to medium volumes with complex shapes, sinker EDM may be more suitable. Wire EDM is often preferred for higher volumes due to its faster setup and consistent cutting performance.
● Electrode Costs: Sinker EDM requires custom electrodes made from graphite, copper, or tungsten. These add to initial tooling costs and may need replacement or re-machining over time.
● Consumables: Wire EDM consumes wire continuously, which is a recurring cost. However, wire is relatively inexpensive and automated feeding reduces labor costs.
● Machine Operation: Sinker EDM machines may have longer cycle times due to slower electrode sinking and complex shapes. Wire EDM generally offers faster cutting speeds for 2D profiles.
● Maintenance: Wire EDM systems often have lower maintenance costs, as they do not require electrode fabrication or frequent replacement.
● Speed: Wire EDM is typically faster for cutting through parts, especially simple or moderately complex shapes. Sinker EDM can be slower due to electrode fabrication and the nature of sinking operations.
● Precision: Both methods provide high precision, but wire EDM’s continuous wire feed allows for consistent accuracy throughout the cut.
● Lead Time: Projects needing rapid turnaround may benefit from wire EDM due to simpler setup and less tooling preparation.
Tip: When choosing between wire cut EDM and sinker EDM, carefully evaluate your part’s geometry, material thickness, and precision needs to balance cost, speed, and quality effectively.
Wire Cut EDM continues evolving, driven by demands for higher precision, faster processing, and smarter automation. Recent advances include:
● Improved Wire Materials: New wire alloys and coatings increase wear resistance, allowing longer cutting times and finer finishes.
● High-Speed EDM: Enhanced power supply and control systems enable faster spark generation, reducing machining time without sacrificing accuracy.
● Automation and CNC Integration: Modern wire EDM machines feature advanced CNC controls paired with robotic loading/unloading, boosting productivity and reducing human error.
● Adaptive Control Technologies: Real-time monitoring adjusts parameters like spark energy and feed rate to optimize cutting conditions dynamically, improving surface quality and tool life.
● Multi-Axis Cutting: Some machines now offer 4- or 5-axis wire movement, enabling complex 3D contours and taper cuts, expanding the range of achievable geometries.
These innovations make wire EDM more efficient, versatile, and accessible for complex manufacturing tasks.
With these advancements, wire EDM is poised to enter new fields and applications, such as:
● Micro-EDM for Electronics: Cutting ultra-fine features on tiny, delicate components for semiconductors and microelectromechanical systems (MEMS).
● Additive Manufacturing Hybridization: Combining wire EDM with 3D printing to refine or finish metal parts, especially in aerospace and medical implants.
● Advanced Aerospace Components: Producing intricate turbine blades and heat exchangers with complex internal channels.
● Medical Device Fabrication: Crafting surgical instruments and implants with ultra-precise shapes and smooth finishes.
● Tooling for Composite Materials: Creating molds and dies for composites used in automotive and wind energy sectors.
These areas benefit from wire EDM’s precision and ability to handle hard, conductive materials without distortion.
Despite progress, wire EDM faces challenges:
● Material Limitations: It only works on electrically conductive materials, excluding many plastics and ceramics.
● Cutting Speed: While faster than before, it remains slower than some alternatives like laser cutting for certain tasks.
● Wire Consumption and Waste: Continuous wire use generates waste and adds to operating costs.
● Complexity and Cost: Advanced multi-axis machines and adaptive controls increase initial investment and maintenance needs.
However, these challenges also present opportunities for innovation. Developing more sustainable wire materials, improving process speed, and integrating AI-driven controls could further enhance efficiency and reduce costs.
Wire Cut EDM and traditional EDM differ primarily in electrode type and cutting direction. Wire Cut EDM uses a moving wire, offering precision and minimal thermal distortion, while traditional EDM employs a shaped electrode for complex 3D cavities. Both methods require conductive materials, but wire EDM excels in cutting hard metals with tight tolerances. Suzhou Sanguang offers advanced Wire Cut EDM solutions, providing exceptional precision and versatility for intricate manufacturing tasks, ensuring superior quality and efficiency in production processes.
A: A wire cutting EDM machine uses a thin, moving wire as an electrode to cut through electrically conductive materials, achieving precise 2D profiles and smooth edges.
A: The wire cutting EDM machine employs electrical discharges between a moving wire and the workpiece, submerged in dielectric fluid, to erode the material accurately.
A: Wire cutting EDM machines excel in cutting precise 2D shapes, handling thick materials, and minimizing thermal distortion, unlike traditional EDM suited for complex 3D cavities.
A: Wire cutting EDM machines can cut electrically conductive materials like hardened steels, titanium alloys, and carbides but cannot process non-conductive materials like plastics.
